Mobile Hydraulic Scissor Lift Table Manual Push Platform Lifter

Temel bilgi

Place of Origin:	Jiangsu,China
Marka adı:	KAD
Sertifika:	CE
Model Number:	MX580S

Min sipariş miktarı:	1 ünite
Fiyat:	$3000-$3500/unit
Packaging Details:	Iron pallet of Single Mast Aluminum Aerial Work Platform 8 Meters Vertical Lift
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	100 adet/Ay

En iyi fiyat Şimdi başvurun

Yük kapasitesi:	230kg	platform size:	1.67m*0.74m
Max. lifting height:	12m	Overall length:	1810m
Genel Genişlik:	760mm	Renk:	Müşterilerin gereksinimleri
Warranty:	1 Year	After-sales service provided:	Overseas service center available,Video technical support,Free spare parts
Application:	Widely,For workshops,logistics and transportation

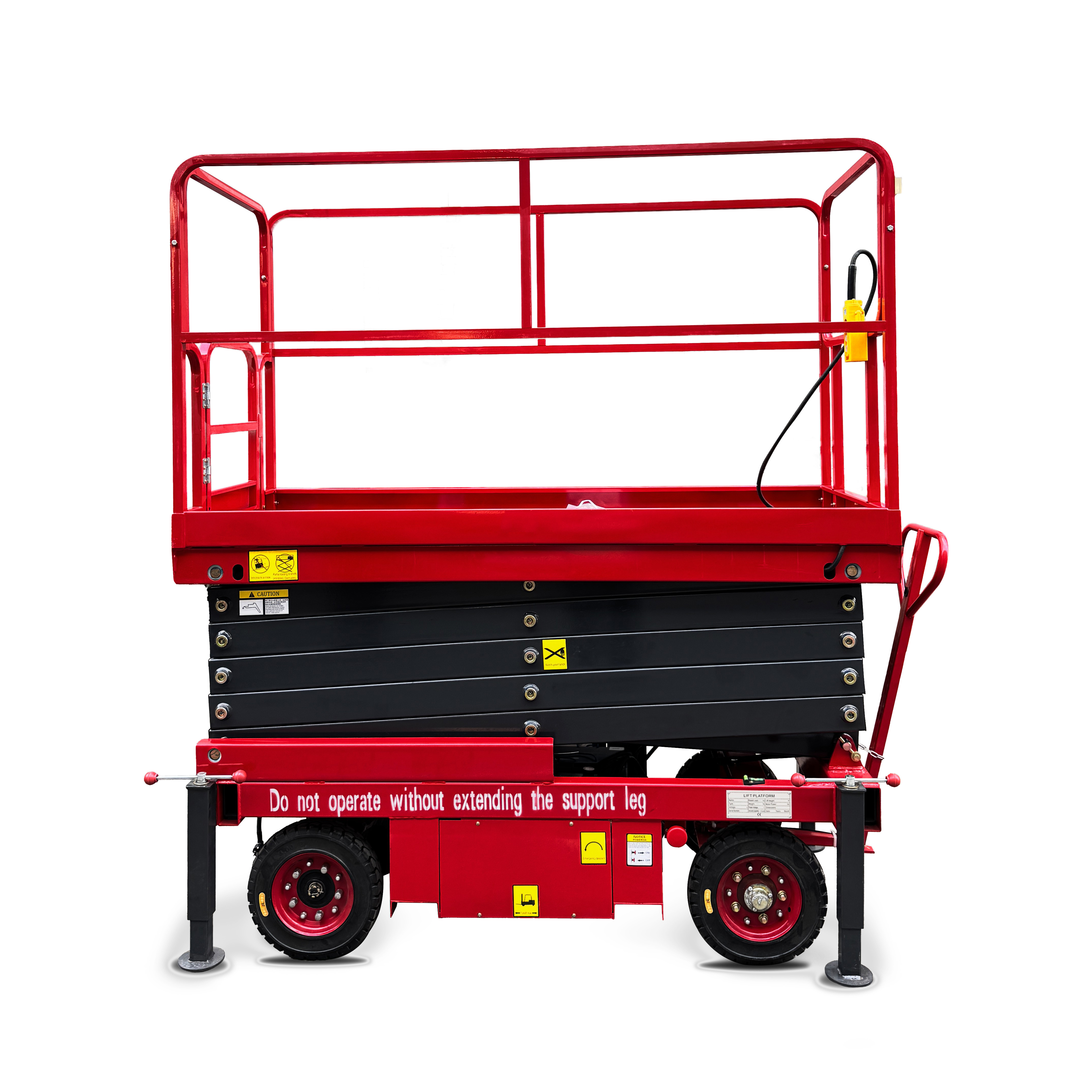

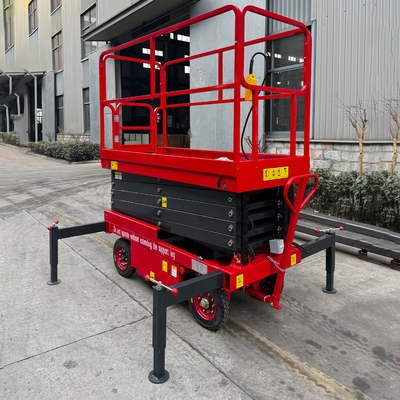

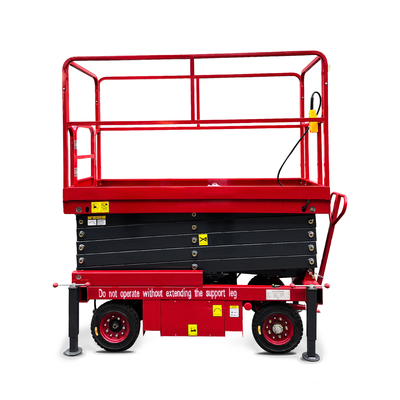

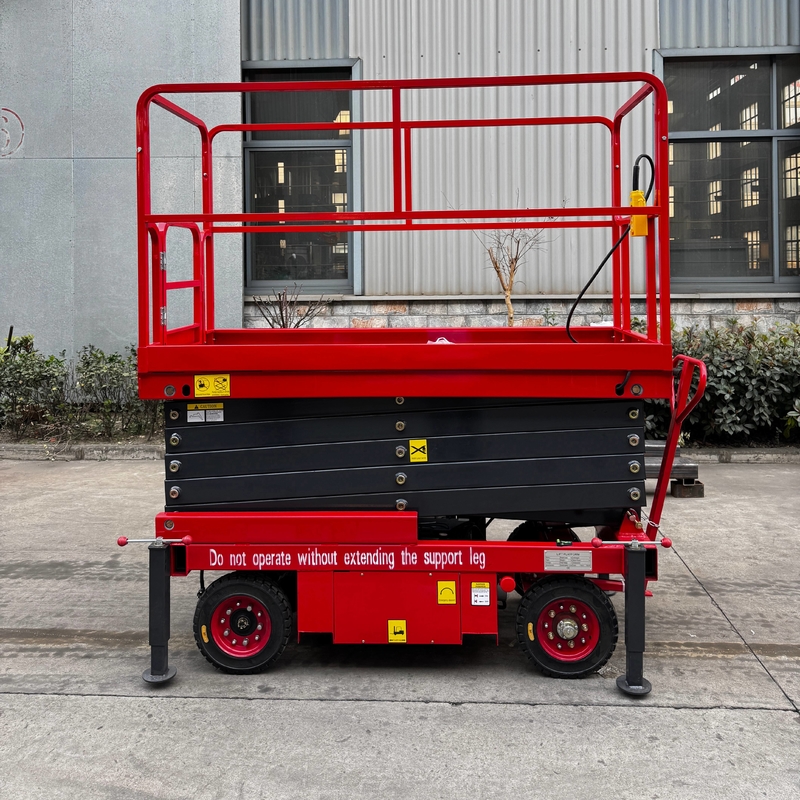

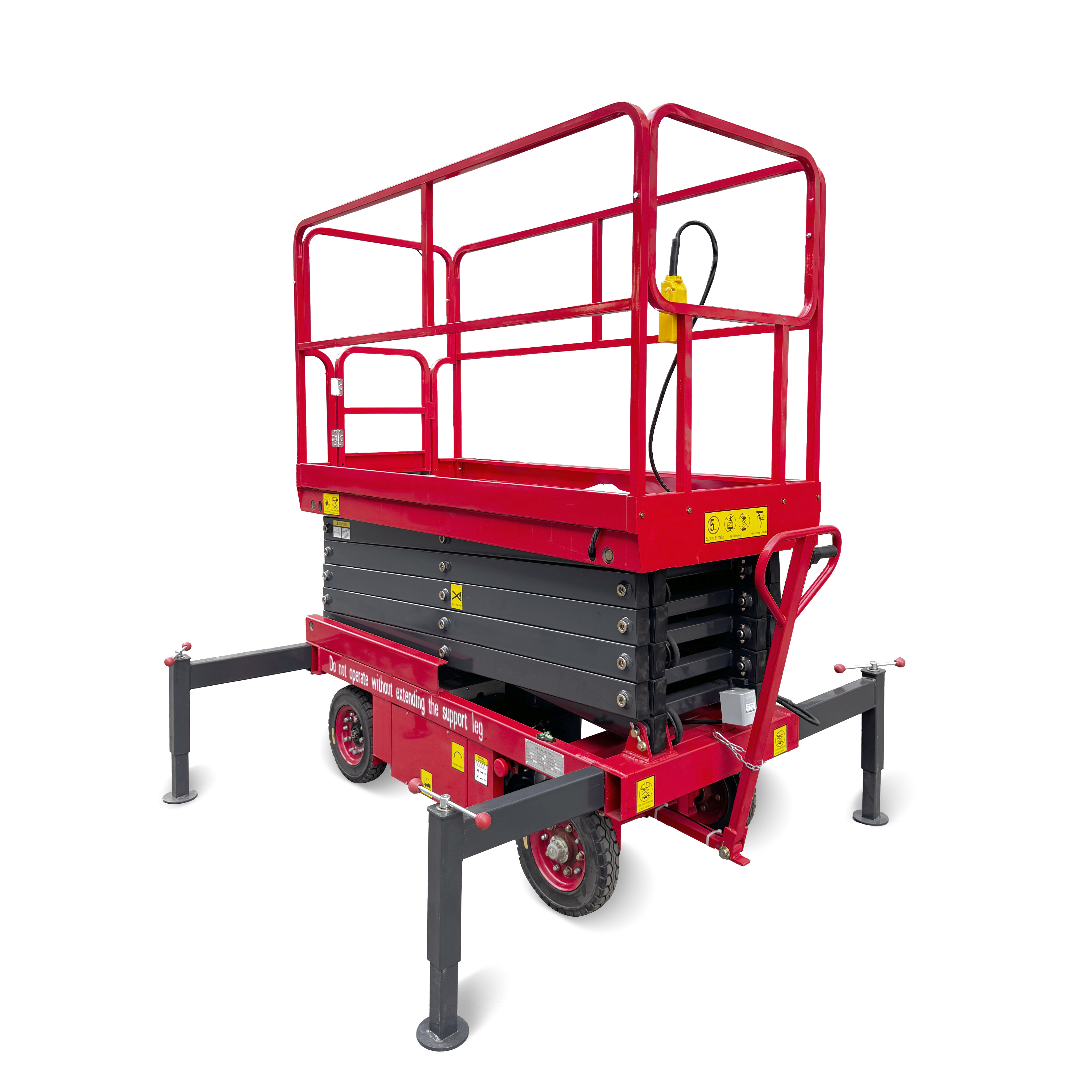

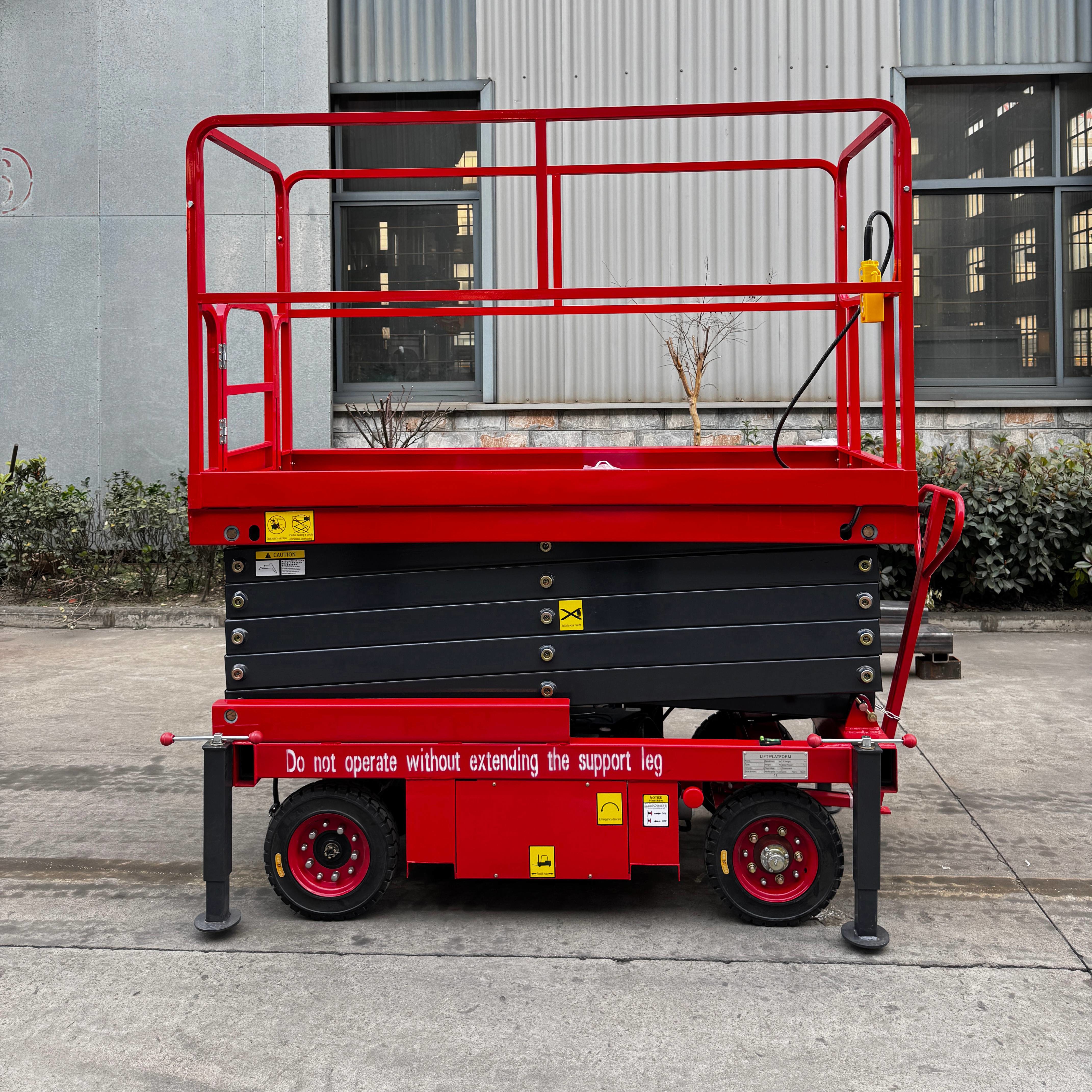

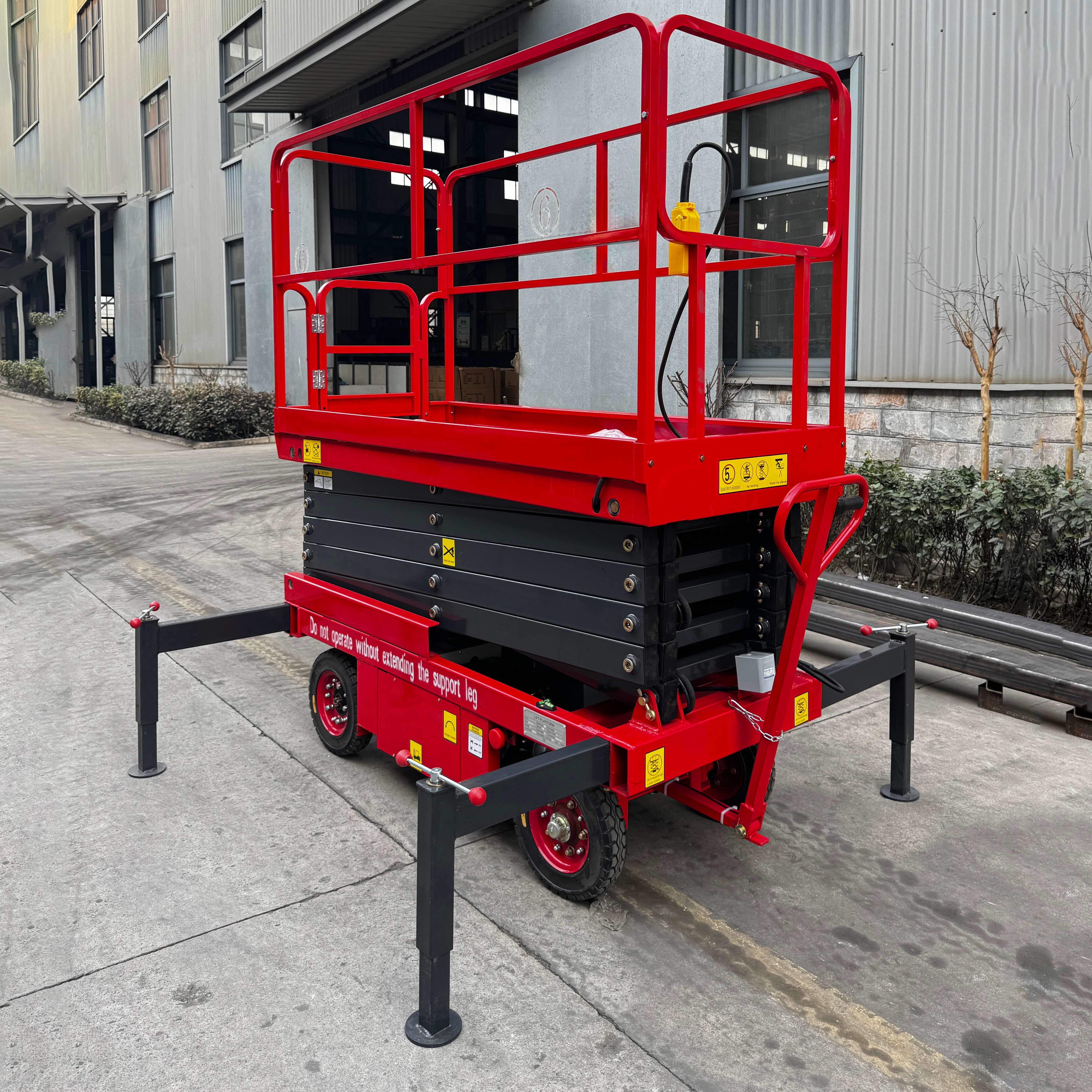

Mobile Hydraulic Scissor Lift Table Manual Push Platform Lifter

This mobile hydraulic scissor lift table is designed for smooth manual operation and easy mobility. Built for everyday industrial tasks, it features a robust hydraulic system and reinforced steel structure. Ideal for lifting and transporting materials in workshops, packing areas, and small warehouses, this platform lifter helps reduce strain and improve workflow efficiency. Its compact size makes it perfect for narrow spaces without sacrificing lifting capacity.

Mobile Hydraulic Scissor Lift Table Manual Push Platform Lifter 0

Model	MX580S	MX600SN	MX800SN	MX800S	MX1000S	MX1200S
S.W.L	230kg	230kg	230kg	450kg	320kg	320kg
S.W.L on Extension	113kg	113kg	113kg	113kg	113kg	113kg
Max.Workers Number	2	2	2	2	2	2
Working height max	7.8m	8m	10m	10m	12m	13.8m
Platform height max	5.8m	6m	8m	8m	10m	11.8m
Overall Length	1.81m	2.43m	2.43m	2.43m	2.43m	2.43m
Overall Width	0.76m	0.81m	0.81m	1.15m	1.15m	1.15m
Overall Height( Rails Up)	2.16m	2.18m	2.3m	2.31m	2.42m	2.55m
Overall Height( Rails Down)	1.82m	1.85m	1.87m	1.76m	1.91m	2.03m
Platform size(LxW)	1.67m*0.74m	2.27m*0.81m	2.27m*0.81m	2.27m*1.12m	2.27m*1.12m	2.27m*1.12m
Platform extension size	0.90m	0.90m	0.90m	0.90m	0.90m	0.90m
Ground Clearance ( Stowed)	0.09m	0.10m	0.10m	0.10m	0.10m	0.10m
Ground Clearance(Raised)	0.019m	0.019m	0.019m	0.019m	0.019m	0.019m
Wheelbase	1.36m	1.87m	1.87m	1.87m	1.87m	1.87m
Turning radius (inside)	0m	0m	0m	0m	0m	0m
Turning radius (outside)	1.64m	2.10m	2.10m	2.10m	2.10m	2.10m
Lift/Drive Motor	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/3.3kw	24V/4.5kw
Travel Speed( Stowed)	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h	3.0km/h
Travel Speed( Raised)	1km/h	1km/h	1km/h	1km/h	1km/h	1km/h
Raise/Lower time	18/22sec	35/25sec	40/30sec	40/30sec	60/40sec	70/45sec
Power source	4*6V/210Ah	4*6V/225Ah	4*6V/225Ah	4*6V/225Ah	4*6V/240Ah	4*6V/260Ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A
Gradeability	25%	25%	25%	25%	25%	25%
