Çin Elektrikli Palet İstifleyici Üretici

Taizhou Kayond Machinery Co., Ltd

Turkish
Bir teklif isteği
Ürün:% s

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling
Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling
Temel bilgi
Sertifika: CE
Min sipariş miktarı: 1
Fiyat: 1760
En iyi fiyat Şimdi başvurun
Model No.: CDDW1535 Yük kapasitesi: 1-1,5 ton
Yükleme Merkezi: 500mm Kaldırma yüksekliği: 3500mm
Çatal genişliği: 550/680 mm Akü kapasitesi: 24/80AH
Brüt ağırlık: 550.000 kg Çatal uzunluğu: 1070mm
Paket Boyutu: 182x90x213cm Sürüş hızı: 5.0/5.0 mm/s
Kaldırma hızı: 140/135 mm/s Azalan hız: 150/155 mm/s
Maksimum eğim: 7/5 ° Sürüş motoru: DC/0.75 kW
Kaldırma motoru: DC/2.2 KW
Vurgulamak:

24V Battery Electric Pallet Stacker

,

1070mm Fork Length Electric Pallet Stacker

,

550/680mm Fork Width Electric Pallet Stacker

High Quality Electric Stacker 1.5t 3500mm Electric Hydraulic Forklift

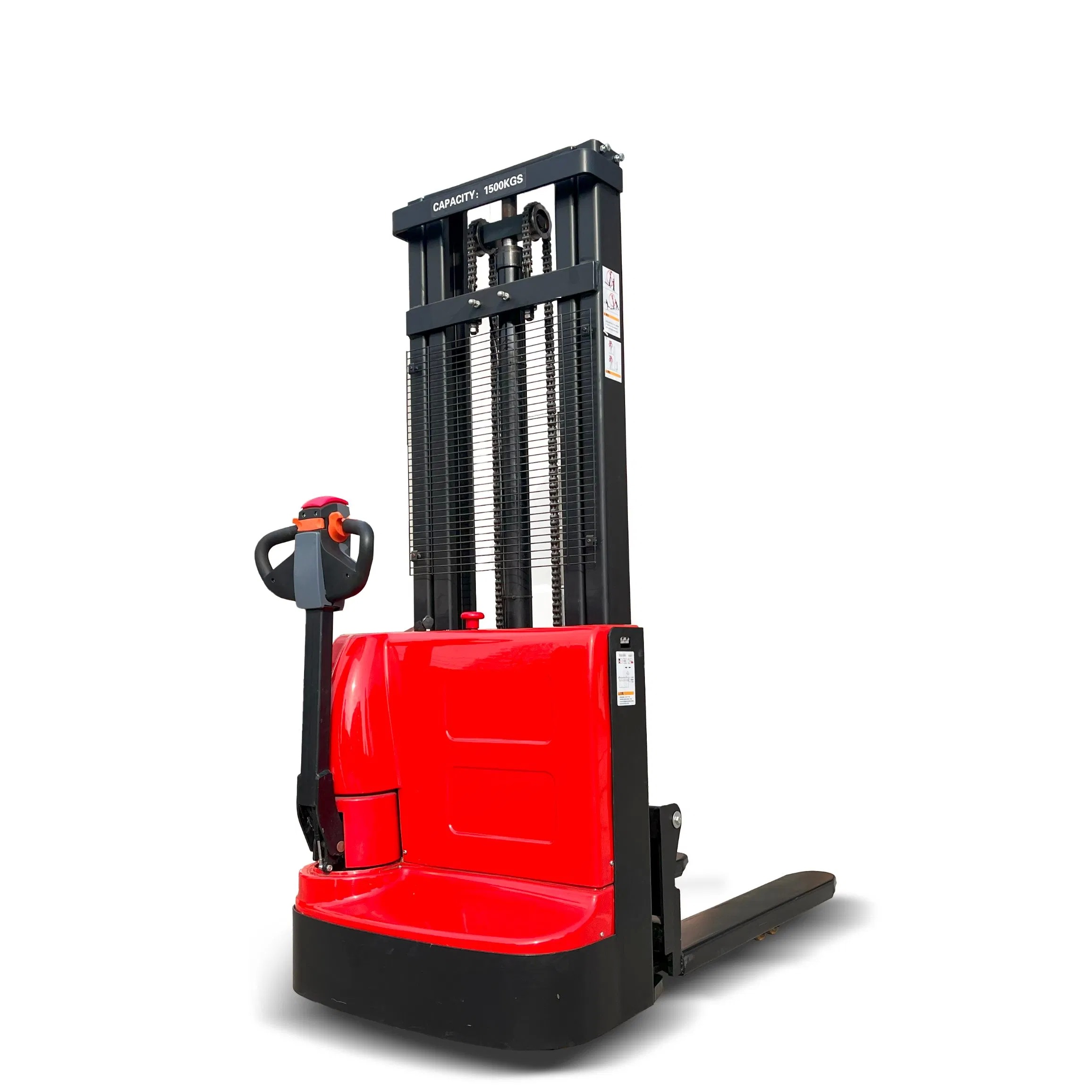

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 0
Product Overview
The walkie stacker is designed for easy operation, requiring only basic training, making it suitable for various workers. Its compact size and light weight allow for excellent maneuverability in tight spaces, ideal for warehouse and factory use.
Key Features
  • Enhanced safety features including emergency brakes, speed limiters, and anti-slip functions
  • Walk-behind operation provides superior control and reduces accident risks
  • Compact design for efficient operation in confined spaces
  • Durable construction for long service life
Technical Specifications
Model CDDW10 CDDW15
Features Drive system Battery
Driving mode Walkie
Load Capacity Q KG 1000
Load Center C MM 500
Weight Weight (With battery) KG 480/495/515/535
Wheels Material PU
Size Lifting Height H3 MM 1600/2000/2500/3000/4000
Lowest Mast H1 MM 2080/1580/1830/2080/1580
Max. Height when operating H4 MM 2080/2730/3230/3730/4750
Min. Height of Fork H13 MM ≤90
Length L1 MM 1770
Performance Driving Speed (Empty/Full Load) MM/S 5.0/5.0
Battery Capacity V/Ah 24/80/100; Li/gel
Product Components
Control Handle
Domestic famous KAD brand control handle with functional buttons for sensitive UP/DOWN, FORWARD/BACKWARD control. Features Curtis brand accelerator for safe operation.
Night Operation Lights
Essential for warehouses with insufficient lighting conditions.

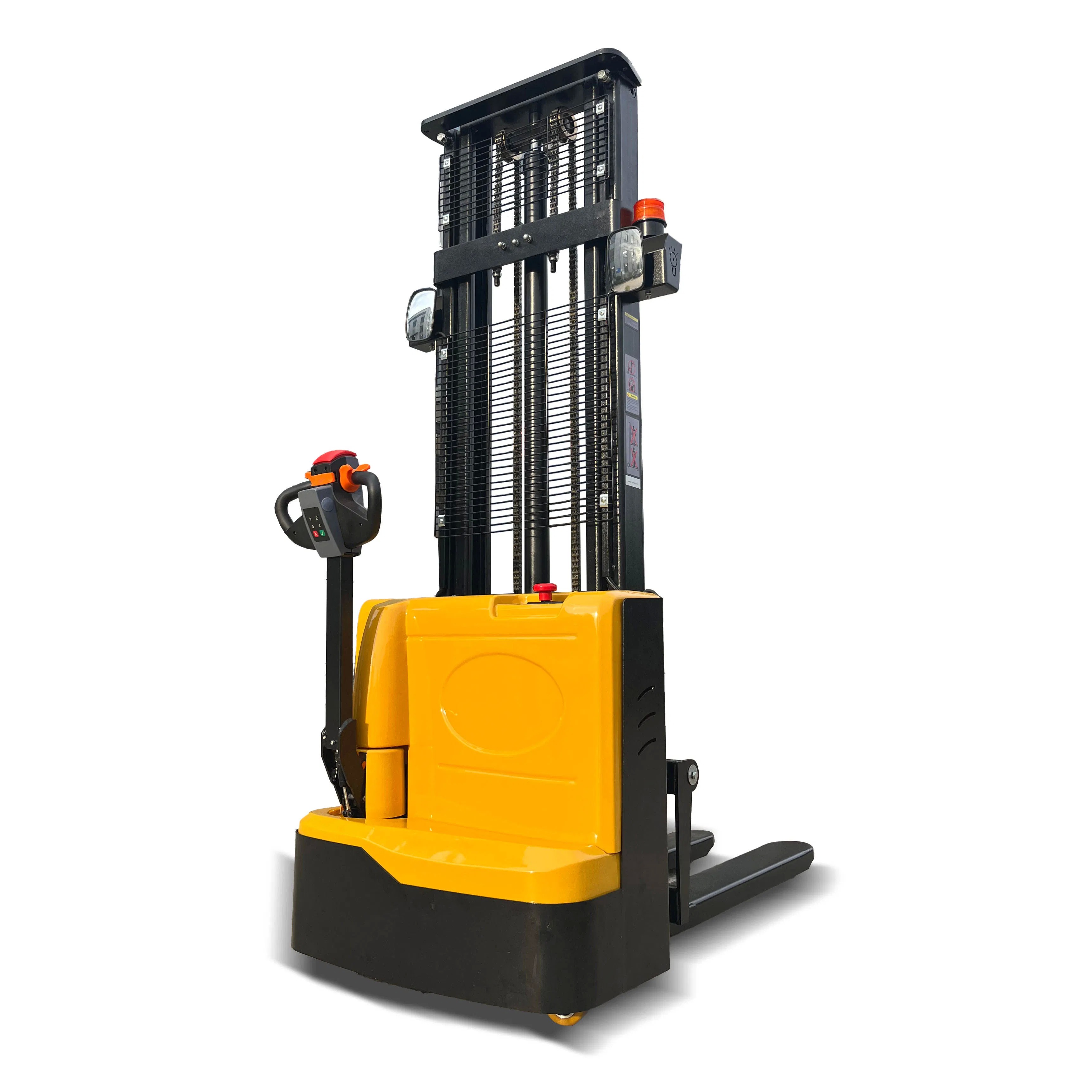

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 1
Safety Features
Includes reverse rearview mirror and buzzing sound for enhanced safety - features often omitted by competitors to reduce costs.
Durable Mast
High-strength 3-stage mast capable of supporting heavy loads at 4-4.5m heights.

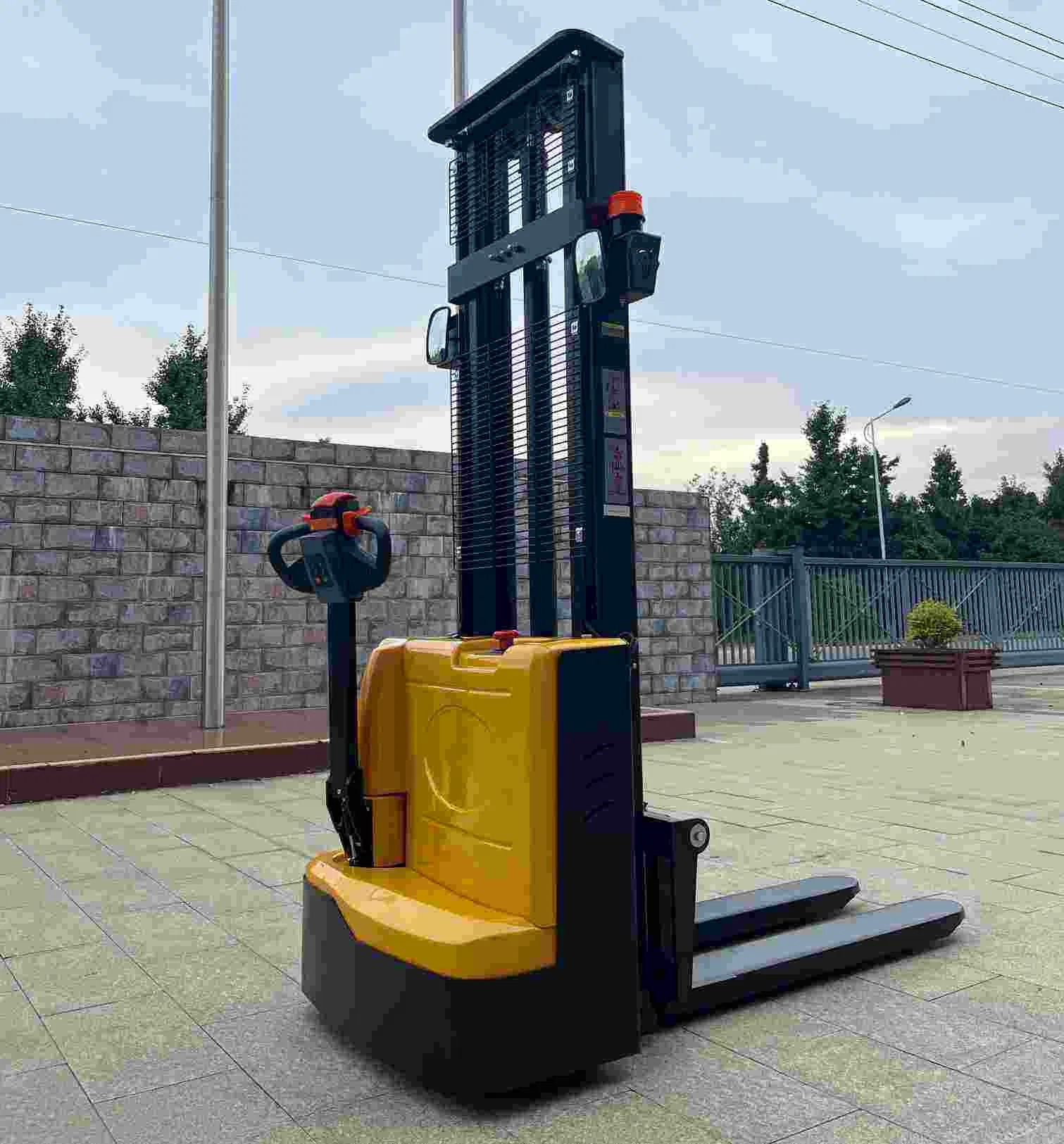

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 2

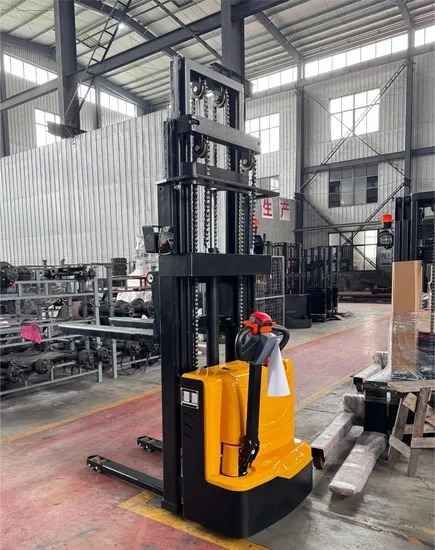

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 3

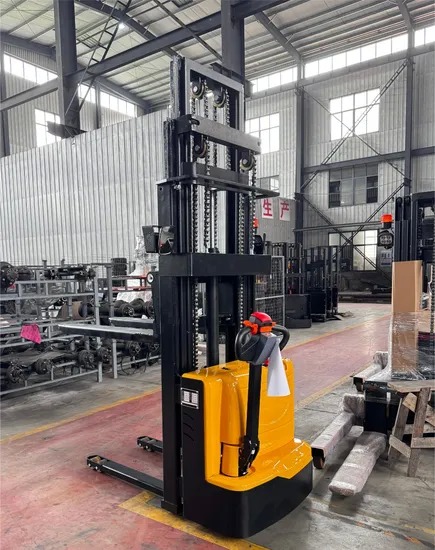

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 4

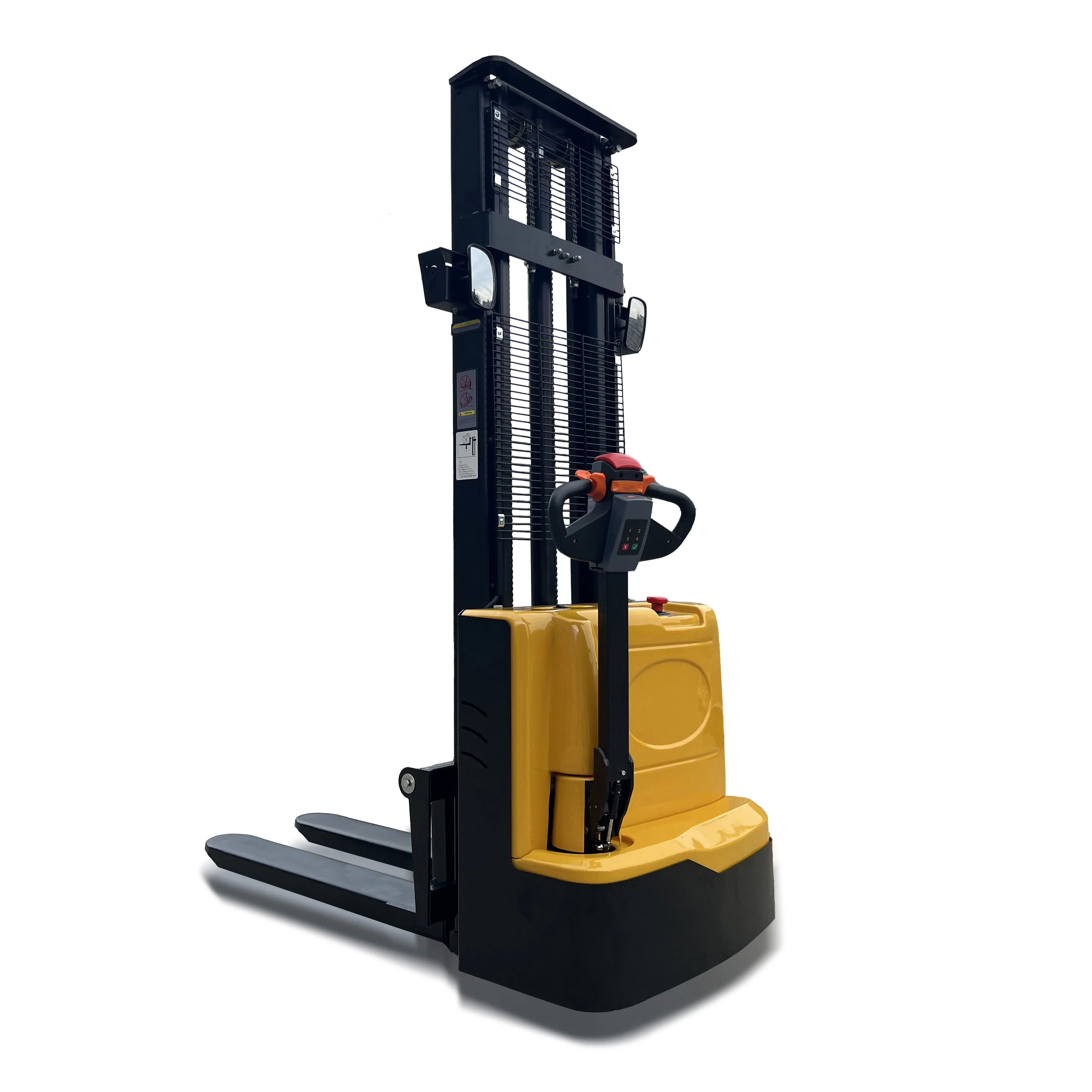

Electric Pallet Stacker with 24V Battery 1070mm Fork Length and 550/680mm Fork Width for Efficient Material Handling 5
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
