3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length

3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length
Temel bilgi
Min sipariş miktarı: 1
Fiyat: 4722
En iyi fiyat Şimdi başvurun
Yük kapasitesi: 3t Yükleme Merkezi: 500mm
Kaldırma yüksekliği: 3000mm Akü kapasitesi: 24v/210Ah
Lastik tipi: PU Tekerlek Dönüş yarıçapı: 1738/2099mm
Çatal uzunluğu: 1070mm Paket Boyutu: 218x90x213cm
Sürüş hızı: 4 Km/h Gradyan: 3°/5°
Sürüş motoru: 1.2 Kw Kaldırma motoru: 2.2 kW
Lastik boyutu: 300/250mm Genel boyut: 2170*1570*2100mm
Ağırlık: 900kg
Vurgulamak:

3t Load Capacity Electric Pallet Stacker

,

3000mm Lift Height Electric Pallet Stacker

,

1070mm Fork Length Electric Pallet Stacker

Great Load Capacity 3ton Forklift Full Electric Platform Stacker
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 0

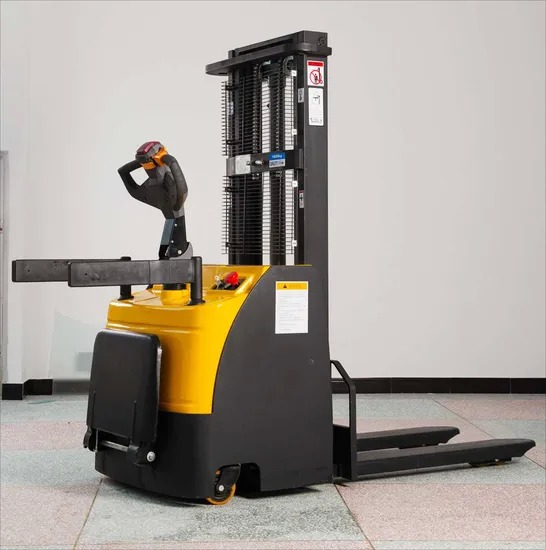

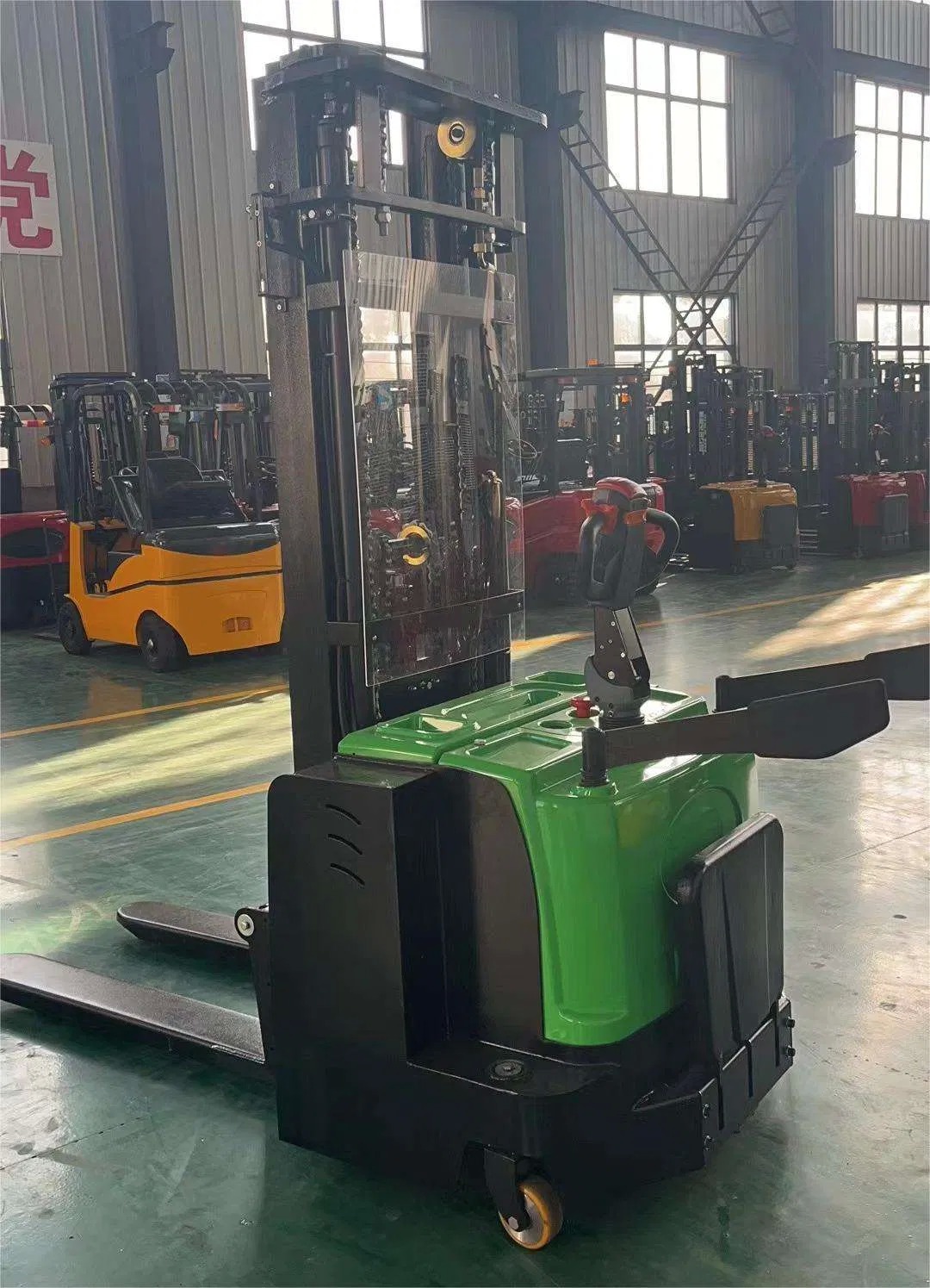

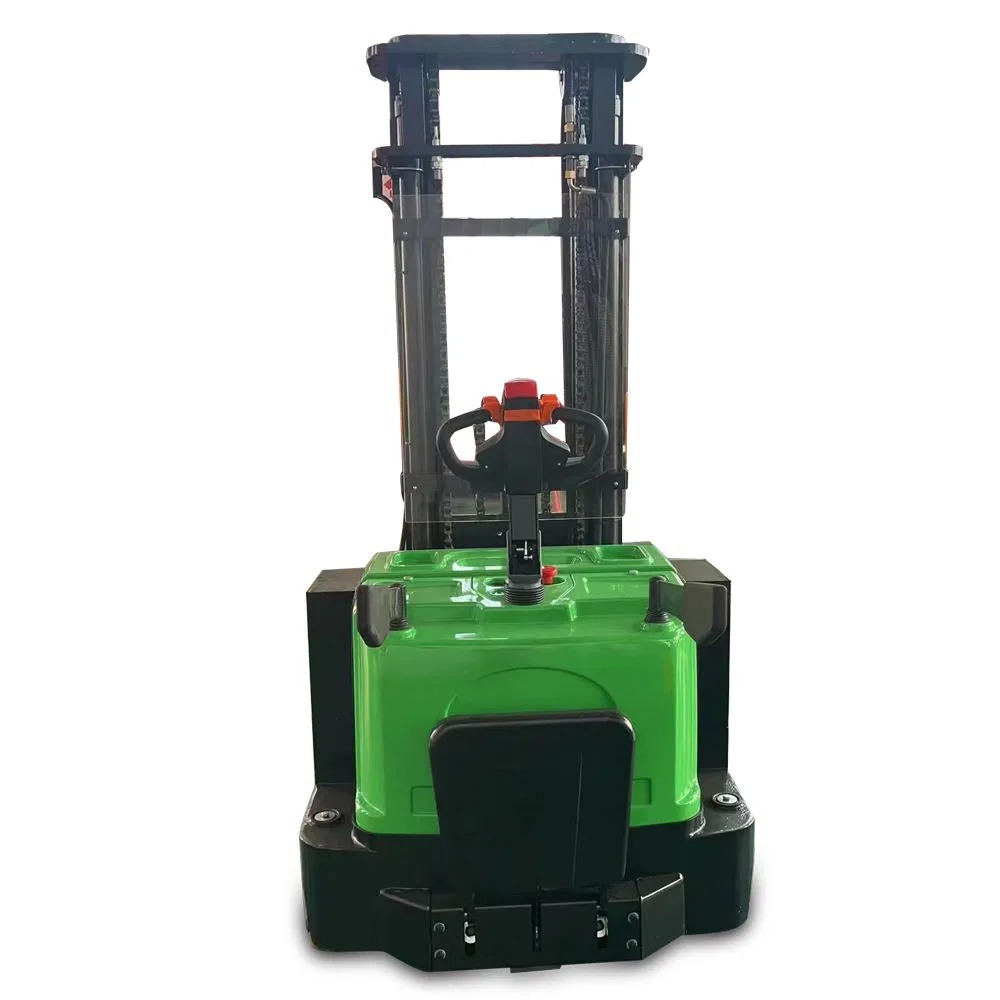

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure and flexible operation, they offer excellent micro-operability and high safety performance. Ideal for operations in narrow passages and confined spaces, these stackers can access ship cabins, carriages, and containers for efficient pallet handling.
Product Specifications
Model CDD1030 CDD1530
Load Capacity 1000 kg 1500 kg
Lifting Height 3000 mm 3000 mm
Load Center 500 mm 500 mm
Fork Size 1220×100×40 mm 1220×100×40 mm
Ground Clearance 30 mm 30 mm
Pedal Length 410 mm 410 mm
Handler Height 1490 mm 1490 mm
Outer Distance Between Forks 685 mm 685 mm
Inner Distance Between Forks 345 mm 345 mm
Tyre Type Polyurethane Polyurethane
Control Way Handler Handler
Speed Regulation Way Stepless Speed Regulation Stepless Speed Regulation
Min. Turning Radius 1500 mm 1500 mm
Driving Speed with Full Loads 4 km/h 4 km/h
Gradient 3°/5° 3°/5°
Battery 24V/210A 24V/210A
Driving Motor 1.2 KW 1.2 KW
Lifting Motor 2.2 KW 2.2 KW
Tyre Size 300/250 mm 300/250 mm
Overall Size 2170×1570×2100 mm 2170×1570×2100 mm
Weight 900 kg 900 kg
Reference Working Time 6 h 6 h
Increased Height Each Tonnage 1600/2000/2500/3000/3500 mm 1600/2000/2500/3000/3500 mm
Max Height 2100/1600/1850/2100/2350 mm 2100/1600/1850/2100/2350 mm
Product Features
Control System
Control Handle: KAD brand domestic famous control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD operation.
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 1
Operation Panel
Combined with key, battery indicator, and emergency switch. The functional panel features an ergonomic design for comfortable operation.
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 2
Lifting Mechanism
Features strong cylinder and chain for smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options.
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 3
Drive System
Side-positioned drive system with strong caster wheels for enhanced stability and maneuverability.
3t Load Capacity 3000mm Lift Height Electric Pallet Stacker with 1070mm Fork Length 4
Frequently Asked Questions
Q: What is your terms of packing?
A: Generally, we pack our goods in paper package and iron pallet. We can pack the goods in your branded boxes after receiving your authorization.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment. Other terms negotiable.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU available.
Q: How about your delivery time?
A: Typically 5 to 30 days after receiving deposit. Exact time depends on product type and order quantity.
Q: Do you test all your goods before delivery?
A: Yes, we conduct 100% testing before delivery.
Q: How do you maintain long-term business relationships?
  1. We maintain good quality and competitive pricing
  2. We treat every customer as a partner, building relationships based on trust and mutual benefit
